High Temperature Removable Insulation Blankets and Covers
for Industrial / Marine Valves,  Piping, Expansion Joints,
Steam Traps and Heat Exchangers

Heat Gain / Heat Loss / Freeze Protection

·  Meets MIL-I-24222, USCG 164.009, ASTM E84 and UL 2200. NRC 1.36 Available
Heat Exchanger Covers

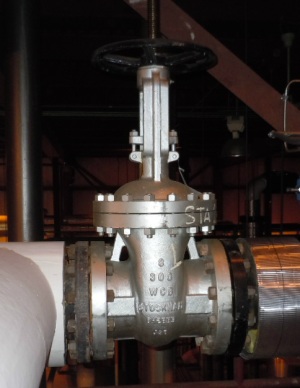

Gate Valve Covers
Custom fabricated removable insulation blankets for industrial and marine valves and piping feature high temperature capability, reduction of thermal radiation and convection.

For low temperature (below 250F) systems, a needled fiberglass hydrophobic foam insulation is mechanically supported by an outer and inner layer of either ptfe coated fiberglass or silicone rubber coated fiberglass.

We require a table of dimensions for the components you need covered, or a hand drawn sketch, or if available a CAD drawing or blueprint or manufacturer's data sheet. A photo of the installation helps if available.

Fabrication time is typically 1 week to 2 weeks after receipt of your order.
Removable blanket sections are assembled with either locking wire or spring clips with stainless hook fasteners or mushroom cap rivits mounted on the fabrics or with "D" rings and straps or velcro closure straps.

The insulation material used meets MIL-I-24244 for low corrosiveness and also meets US Coast Guard 164.009 for incombustible materials.
Catalog Page & Pricing

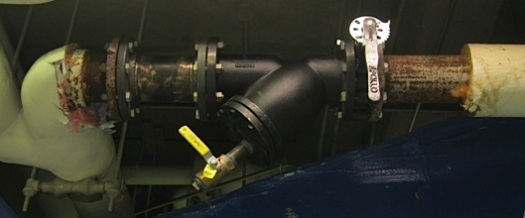

ball valve and pipe before insulation blanket installation
ball valve and piping with heat loss - heat gain - freeze protection insulation blanket installed

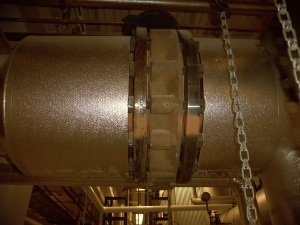

butterfly valve prior to insulation blanket installation
butterfly valve insulation blanket installation
industrial valve prior to fitting of insulation cover
industrial marine valve with insulation blanket cover
heat exchanger about to have insulation cover fitted
plate heat exchanger with insulation blanket cover attached
freeze protection heat tapes with preset thermostat
pipe freeze protection electrical heat tapes
For applications requiring freeze protection, fixed thermostat or variable set thermostat heating tapes are available: 120 and 220 VAC.
Butterfly Valve Covers
Ball Valve Covers

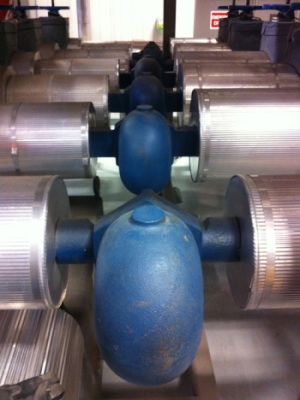

steam trap before adding insulating cover
steam trap with insulation cover
Steam Trap Covers

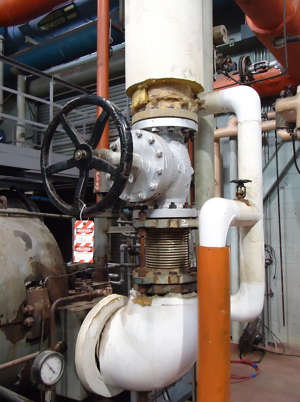

globe valve before insulation cover added
globe valve with insulation cover
Globe Valve Covers
