Self Cleaning Oven Replacement Door Gasket - Original OEM Manufacture
Fiberglass with Mounting Clips: High Temperature & Heat Resistant
Cut to length parts: (GE Part WB41T10003 $39.00: Maytag/Whirlpool W10162384 $24.87)
Fits GE, Maytag, Whirlpool, Moffat, Hotpoint, Kenmore, Profile, & Westinghouse models
listed at bottom of page. Measure gasket length required or remove old gasket and measure.
Fiberglass with Mounting Clips: High Temperature & Heat Resistant
Cut to length parts: (GE Part WB41T10003 $39.00: Maytag/Whirlpool W10162384 $24.87)
Fits GE, Maytag, Whirlpool, Moffat, Hotpoint, Kenmore, Profile, & Westinghouse models
listed at bottom of page. Measure gasket length required or remove old gasket and measure.
This replacement gasket is designed for self cleaning ovens.
The gasket may be used on the frame of the oven or on the door of the oven, depending on the model and manufacturer.

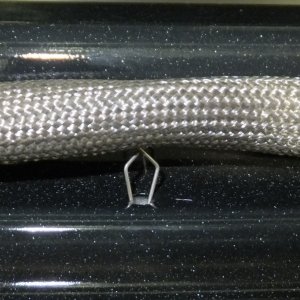

The old gasket may be removed by pulling the gasket out at the mounting clip locations. The replacement gasket simply clips into place using the same mounting hole locations as the original gasket.
The ends of the gasket are inserted into the holding holes usually at the bottom of the door or frame. A small long object such as a pencil or screwdriver can be used to stuff the gasket ends into the holding holes.
Remove the old gasket and measure the total length, or measure the circumference of the gasket location on the frame or oven door, and allow for the extra length at the bottom for the amount of the gasket inside the holding holes.
If during installation an extra clip is present and no mounting hole exists for it, then simply cut-off the clip with side-cutters, or remove the clip from the gasket.
The gasket rope OD is 0.57" / 15mm. The ID of the hollow knit metal sleeve core is 1/2" / 13mm. Clip spacing is 3".
The gasket may be used on the frame of the oven or on the door of the oven, depending on the model and manufacturer.
The old gasket may be removed by pulling the gasket out at the mounting clip locations. The replacement gasket simply clips into place using the same mounting hole locations as the original gasket.
The ends of the gasket are inserted into the holding holes usually at the bottom of the door or frame. A small long object such as a pencil or screwdriver can be used to stuff the gasket ends into the holding holes.
Remove the old gasket and measure the total length, or measure the circumference of the gasket location on the frame or oven door, and allow for the extra length at the bottom for the amount of the gasket inside the holding holes.
If during installation an extra clip is present and no mounting hole exists for it, then simply cut-off the clip with side-cutters, or remove the clip from the gasket.
The gasket rope OD is 0.57" / 15mm. The ID of the hollow knit metal sleeve core is 1/2" / 13mm. Clip spacing is 3".
Very High Temperature
Fiberglass Rope Clip Gasket with Hollow Core
Fiberglass Rope Clip Gasket with Hollow Core
Part Number
R-FG-HMC-CLIP
R-FG-HMC-CLIP
Example of Self Cleaning Oven Gasket Mounted into Oven Frame
Example of Self Cleaning Oven Gasket Mounted into Door Frame
Ends of the clip gasket are typically stuffed into openings on the oven door or frame designed for the purpose - no other treatment of the gasket end is required.
Fits ovens model numbers: J2S968BH1BB , J2S968BH2BB , J2S968BH3BB , J2S968BH4BB , J2S968BH5BB , J2S968BH6BB , J2S968KH1CC , J2S968KH2CC , J2S968KH3CC , J2S968KH4CC , J2S968KH5CC , J2S968KH6CC , J2S968SH1SS , J2S968SH2SS , J2S968SH3SS , J2S968SH4SS , J2S968SH5SS , J2S968SH6SS , J2S968TH1WW , J2S968TH2WW , J2S968TH3WW , J2S968TH4WW , J2S968TH5WW , J2S968TH6WW , JCS968BF1BB , JCS968BF2BB , JCS968BF3BB , JCS968BF4BB , JCS968BF5BB , JCS968BF6BB , JCS968KF1CC , JCS968KF2CC , JCS968KF3CC , JCS968KF4CC , JCS968KF5CC , JCS968KF6CC , JCS968SF1SS , JCS968SF2SS , JCS968SF3SS , JCS968SF4SS , JCS968SF5SS , JCS968SF6SS , JCS968TF1WW , JCS968TF2WW , JCS968TF3WW , JCS968TF4WW , JCS968TF5WW , JCS968TF6WW , JCSP42SK1SS , JCSP47BF1BB , JCSP47BF2BB , JCSP47BF3BB , JCSP47BF4BB , JCSP47BF5BB , JCSP47BF6BB , JCSP47SK1SS , JCSP47WF1WW , JCSP47WF2WW , JCSP47WF3WW , JCSP47WF4WW , JCSP47WF5WW , JCSP47WF6WW , JCT915BF1BB , JCT915BF2BB , JCT915BF3BB , JCT915BF4BB , JCT915BF5BB , JCT915BF6BB , JCT915BF7BB , JCT915BF8BB , JCT915SF1SS , JCT915SF2SS , JCT915SF3SS , JCT915SK1SS , JCT915SK2SS , JCT915SK3SS , JCT915SK4SS , JCT915SK5SS , JCT915WF1WW , JCT915WF2WW , JCT915WF3WW , JCT915WF4WW , JCT915WF5WW , JCT915WF6WW , JCT915WF7WW , JCT915WF8WW , JD900BK1BB , JD900CK1CC , JD900WK1WW , JD968BF1BB , JD968BF2BB , JD968BF3BB , JD968BF4BB , JD968BF5BB , JD968BF6BB , JD968BK1BB , JD968KF1CC , JD968KF2CC , JD968KF3CC , JD968KF4CC , JD968KF5CC , JD968KF6CC , JD968KK1CC , JD968SF1SS , JD968SF2SS , JD968SF3SS , JD968SF4SS , JD968SF5SS , JD968SF6SS , JD968SK1SS , JD968TF1WW , JD968TF2WW , JD968TF3WW , JD968TF4WW , JD968TF5WW , JD968TF6WW , JD968TK1WW , JDP47BF1BB , JDP47BF2BB , JDP47BF3BB , JDP47BF4BB , JDP47BF5BB , JDP47BF6BB , JDP47CF1CC , JDP47CF2CC , JDP47CF3CC , JDP47CF4CC , JDP47CF5CC , JDP47CF6CC , JDP47WF1WW , JDP47WF2WW , JDP47WF3WW , JDP47WF4WW , JDP47WF5WW , JDP47WF6WW , JGS968BH1BB , JGS968BH2BB , JGS968BH3BB , JGS968BH4BB , JGS968BH5BB , JGS968BH6BB , JGS968KH1CC , JGS968KH2CC , JGS968KH3CC , JGS968KH4CC , JGS968KH5CC , JGS968KH6CC , JGS968SH1SS , JGS968SH2SS , JGS968SH3SS , JGS968SH4SS , JGS968SH5SS , JGS968SH6SS , JGS968TH1WW , JGS968TH2WW , JGS968TH3WW , JGS968TH4WW , JGS968TH5WW , JGS968TH6WW , JGSP48BH1BB , JGSP48BH2BB , JGSP48BH3BB , JGSP48BH4BB , JGSP48BH5BB , JGSP48BH6BB , JGSP48CH1CC , JGSP48CH2CC , JGSP48CH3CC , JGSP48CH4CC , JGSP48CH5CC , JGSP48CH6CC , JGSP48SH1SS , JGSP48SH2SS , JGSP48SH3SS , JGSP48SH4SS , JGSP48WH1WW , JGSP48WH2WW , JGSP48WH3WW , JGSP48WH4WW , JGSP48WH5WW , JGSP48WH6WW , JS900BK1BB , JS900CK1CC , JS900SK1SS , JS900WK1WW , JS905SK1SS , JS968BF1BB , JS968BF2BB , JS968BF3BB , JS968BF4BB , JS968BF5BB , JS968BF6BB , JS968KF1CC , JS968KF2CC , JS968KF3CC , JS968KF4CC , JS968KF5CC , JS968KF6CC , JS968SF1SS , JS968SF2SS , JS968SF3SS , JS968SF4SS , JS968SF5SS , JS968SF6SS , JS968SK1SS , JS968TF1WW , JS968TF2WW , JS968TF3WW , JS968TF4WW , JS968TF5WW , JS968TF6WW , JSP42BK1BB , JSP42BK2BB , JSP42CK1CC , JSP42CK2CC , JSP42SK1SS , JSP42SK2SS , JSP42WK1WW , JSP42WK2WW , JSP47BF1BB , JSP47BF2BB , JSP47BF3BB , JSP47BF4BB , JSP47BF5BB , JSP47BF6BB , JSP47CF1CC , JSP47CF2CC , JSP47CF3CC , JSP47CF4CC , JSP47CF5CC , JSP47CF6CC , JSP47SH1SS , JSP47SH2SS , JSP47SH3SS , JSP47WF1WW , JSP47WF2WW , JSP47WF3WW , JSP47WF4WW , JSP47WF5WW , JSP47WF6WW , JSP57BF1BB , JSP57BF2BB , JSP57BF3BB , JSP57CF1CC , JSP57CF2CC , JSP57CF3CC , JSP57WF1WW , JSP57WF2WW , JSP57WF3WW , JT912BF1BB , JT912BF2BB , JT912BF3BB , JT912BF4BB , JT912BF5BB , JT912BF6BB , JT912BF7BB , JT912BF8BB , JT912CF1CC , JT912CF2CC , JT912CF3CC , JT912CF4CC , JT912CF5CC , JT912CF6CC , JT912CF7CC , JT912CF8CC , JT912SF1SS , JT912SF2SS , JT912SF3SS , JT912SK1SS , JT912SK2SS , JT912SK3SS , JT912SK4SS , JT912SK5SS , JT912WF1WW , JT912WF2WW , JT912WF3WW , JT912WF4WW , JT912WF5WW , JT912WF6WW , JT912WF7WW , JT912WF8WW , JT915BF1BB , JT915BF2BB , JT915BF3BB , JT915BF4BB , JT915BF5BB , JT915BF6BB , JT915BF7BB , JT915BF8BB , JT915CF1CC , JT915CF2CC , JT915CF3CC , JT915CF4CC , JT915CF5CC , JT915CF6CC , JT915CF7CC , JT915CF8CC , JT915SF1SS , JT915SF2SS , JT915SF3SS , JT915SK1SS , JT915SK2SS , JT915SK3SS , JT915SK4SS , JT915SK5SS , JT915WF1WW , JT915WF2WW , JT915WF3WW , JT915WF4WW , JT915WF5WW , JT915WF6WW , JT915WF7WW , JT915WF8WW , JT952BF1BB , JT952BF2BB , JT952BF3BB , JT952BF4BB , JT952BF5BB , JT952BF6BB , JT952BF7BB , JT952BF8BB , JT952CF1CC , JT952CF2CC , JT952CF3CC , JT952CF4CC , JT952CF5CC , JT952CF6CC , JT952CF7CC , JT952CF8CC , JT952SF1SS , JT952SF2SS , JT952SF3SS , JT952SF4SS , JT952SK1SS , JT952SK2SS , JT952SK3SS , JT952SK4SS , JT952WF1WW , JT952WF2WW , JT952WF3WW , JT952WF4WW , JT952WF5WW , JT952WF6WW , JT952WF7WW , JT952WF8WW , JT955BF1BB , JT955BF2BB , JT955BF3BB , JT955BF4BB , JT955BF5BB , JT955BF6BB , JT955BF7BB , JT955BF8BB , JT955CF1CC , JT955CF2CC , JT955CF3CC , JT955CF4CC , JT955CF5CC , JT955CF6CC , JT955CF7CC , JT955CF8CC , JT955SF1SS , JT955SF2SS , JT955SF3SS , JT955SF4SS , JT955SK1SS , JT955SK2SS , JT955SK3SS , JT955SK4SS , JT955WF1WW , JT955WF2WW , JT955WF3WW , JT955WF4WW , JT955WF5WW , JT955WF6WW , JT955WF7WW , JT955WF8WW , JT965BF1BB , JT965BF2BB , JT965BF3BB , JT965BF4BB , JT965BF5BB , JT965BF6BB , JT965BF7BB , JT965CF1CC , JT965CF2CC , JT965CF3CC , JT965CF4CC , JT965CF5CC , JT965CF6CC , JT965CF7CC , JT965SF1SS , JT965SF2SS , JT965SF3SS , JT965SF4SS , JT965SK1SS , JT965SK2SS , JT965SK3SS , JT965SK4SS , JT965WF1WW , JT965WF2WW , JT965WF3WW , JT965WF4WW , JT965WF5WW , JT965WF6WW , JT965WF7WW , JT980BH1BB , JT980BH1BB , JT980BH2BB , JT980BH2BB , JT980BH3BB , JT980BH3BB , JT980CH1CC , JT980CH1CC , JT980SH1SS , JT980SH1SS , JT980SK1SS , JT980SK1SS , JT980SK2SS , JT980SK2SS , JT980SK3SS , JT980SK3SS , JT980WH1WW , JT980WH1WW , JT980WH2WW , JT980WH2WW , JT980WH3WW , JT980WH3WW , JTP20BF1BB , JTP20BF2BB , JTP20BF3BB , JTP20BF5BB , JTP20BF6BB , JTP20BF7BB , JTP20CF1CC , JTP20CF2CC , JTP20CF3CC , JTP20CF5CC , JTP20CF6CC , JTP20CF7CC , JTP20SF1SS , JTP20SF2SS , JTP20SF3SS , JTP20SF4SS , JTP20SF5SS , JTP20WF1WW , JTP20WF2WW , JTP20WF3WW , JTP20WF5WW , JTP20WF6WW , JTP20WF7WW , JTP25SH1SS , JTP25SH2SS , JTP25SH3SS , JTP25SH4SS , JTP25SH5SS , JTP25SH6SS , JTP28BF1BB , JTP28BF2BB , JTP28BF3BB , JTP28BF4BB , JTP28BF5BB , JTP28BF6BB , JTP28BF7BB , JTP28CF1CC , JTP28CF2CC , JTP28CF3CC , JTP28CF4CC , JTP28CF5CC , JTP28CF6CC , JTP28CF7CC , JTP28SF1SS , JTP28SF2SS , JTP28SF3SS , JTP28SF4SS , JTP28SK1SS , JTP28SK2SS , JTP28SK3SS , JTP28WF1WW , JTP28WF2WW , JTP28WF3WW , JTP28WF4WW , JTP28WF5WW , JTP28WF6WW , JTP28WF7WW , JTP48BF1BB , JTP48BF2BB , JTP48BF3BB , JTP48BF4BB , JTP48BF5BB , JTP48BF6BB , JTP48BF7BB , JTP48CF1CC , JTP48CF2CC , JTP48CF3CC , JTP48CF4CC , JTP48CF5CC , JTP48CF6CC , JTP48CF7CC , JTP48SF1SS , JTP48SF2SS , JTP48SF3SS , JTP48SF4SS , JTP48SF5SS , JTP48WF1WW , JTP48WF2WW , JTP48WF3WW , JTP48WF4WW , JTP48WF5WW , JTP48WF6WW , JTP48WF7WW , JTP50SH1SS , JTP50SH2SS , JTP50SH3SS , JTP50SH4SS , JTP50SH5SS , JTP50SH6SS , JTP86BF1BB , JTP86BF2BB , JTP86BF3BB , JTP86BF4BB , JTP86BF5BB , JTP86BF6BB , JTP86BF7BB , JTP86CF1CC , JTP86CF2CC , JTP86CF3CC , JTP86CF4CC , JTP86CF5CC , JTP86CF6CC , JTP86CF7CC , JTP86SF1SS , JTP86SF2SS , JTP86SF3SS , JTP86SH1SS , JTP86SH2SS , JTP86SH3SS , JTP86SH4SS , JTP86SH5SS , JTP86SH6SS , JTP86WF1WW , JTP86WF2WW , JTP86WF3WW , JTP86WF4WW , JTP86WF5WW , JTP86WF6WW , JTP86WF7WW , ZET3058BH1BB , ZET3058BH1BB , ZET3058BH2BB , ZET3058BH2BB , ZET3058BH3BB , ZET3058BH3BB , ZET3058BH4BB , ZET3058BH4BB , ZET3058BH5BB , ZET3058BH5BB , ZET3058SH1SS , ZET3058SH1SS , ZET3058SH2SS , ZET3058SH2SS , ZET3058SH3SS , ZET3058SH3SS , ZET3058SH4SS , ZET3058SH4SS , ZET3058SH5SS , ZET3058SH5SS , ZET3058WH1WW , ZET3058WH1WW , ZET3058WH2WW , ZET3058WH2WW , ZET3058WH3WW , ZET3058WH3WW , ZET938BF1BB , ZET938BF2BB , ZET938BF3BB , ZET938BF4BB , ZET938BF5BB , ZET938BF6BB , ZET938SF1SS , ZET938SF2SS , ZET938SF3SS , ZET938SF4SS , ZET938SF5SS , ZET938SF6SS , ZET938WF1WW , ZET938WF2WW , ZET938WF3WW , ZET938WF4WW , ZET938WF5WW , ZET958BF1BB , ZET958BF2BB , ZET958BF3BB , ZET958BF4BB , ZET958BF5BB , ZET958BF6BB , ZET958BF7BB , ZET958SF1SS , ZET958SF2SS , ZET958SF3SS , ZET958SF4SS , ZET958SF5SS , ZET958SF6SS , ZET958SF7SS , ZET958WF1WW , ZET958WF2WW , ZET958WF3WW , ZET958WF4WW , ZET958WF5WW , ZET958WF6WW ,
