This specially designed sleeve is recommended for sleeving applications which require a snug fit over irregular shapes. It provides a “heat shrink” type fit while still providing flexibility, abrasion resistance, moisture resistance, uv, ozone and chemical resistance.
This sleeve can expand to twice its nominal relaxed diameter.
Electrically rated to +200°C, but can provide higher temperature performance if the electrical properties are not required.
Provides dielectric grade A, NEMA TF-1, Type 5; Mil-I-3190/6 (Grade A).
Available in 8 sizes: .076", 0.118", 0.166", 0.234", 0.330", 0.375", 0.500", 0.625" (relaxed size). Expands to twice the nominal size.
Available in Black and White.
This sleeve can expand to twice its nominal relaxed diameter.
Electrically rated to +200°C, but can provide higher temperature performance if the electrical properties are not required.
Provides dielectric grade A, NEMA TF-1, Type 5; Mil-I-3190/6 (Grade A).
Available in 8 sizes: .076", 0.118", 0.166", 0.234", 0.330", 0.375", 0.500", 0.625" (relaxed size). Expands to twice the nominal size.
Available in Black and White.
High Temperature Heat Resistant High Stretch Expandable Firesleeve
Materials that resist catching fire, burn slowly, or retard burning can be described as either "incombustible", "non-flammable", "non-combustible", "fire-resistant" or "fire-retardant". "Self-extinguishing" materials cease burning once the flame or heat source is removed. "Fireproof" is understood to mean that an object cannot burn, but few materials are truly fireproof.
Most of our products fall within one or more of the above descriptions: they resist high temperature, flame, fire, molten metal splash and weld splatter very well but may melt with prolonged exposures past their designed maximum continuous operating temperature. They can also provide OSHA, ANSI-FM & NFPA compliance and personnel protection.
Using our products to retain heat or cold within pipes, hoses, enclosures or equipment helps conserve energy and resources, and reduces operating costs.
AB Technology Group: Keeping Our World Cooler ä. All products are non-asbestos and 100% asbestos free
Most of our products fall within one or more of the above descriptions: they resist high temperature, flame, fire, molten metal splash and weld splatter very well but may melt with prolonged exposures past their designed maximum continuous operating temperature. They can also provide OSHA, ANSI-FM & NFPA compliance and personnel protection.
Using our products to retain heat or cold within pipes, hoses, enclosures or equipment helps conserve energy and resources, and reduces operating costs.
AB Technology Group: Keeping Our World Cooler ä. All products are non-asbestos and 100% asbestos free
392°F / 200°C Continuous Exposure: Higher Intermittent
FlameShieldä High Temperature, Heat, Flame Resistant Silicone Rubber

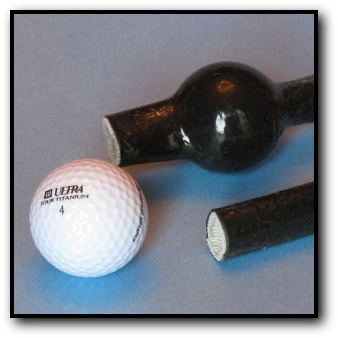

Coated Fiberglass StretchSleeveä Expandable Sleeve
FlameShieldä High Temperature, Heat, Flame Resistant Silicone Rubber
Coated Fiberglass StretchSleeveä Expandable Sleeve
Part Number S-FS-SS
