Fiberglass Compression Gasket Rope - with Clip Mounting
- Hollow Knit Metal Core
High Temperature, Heat & Flame Resistant and Thermal Insulating
- Hollow Knit Metal Core
High Temperature, Heat & Flame Resistant and Thermal Insulating
1200°F / 648°C Continuous:
Higher Intermittent
This high temperature, heat & flame resistant and thermal insulating fiberglass rope gasket seal is fabricated with high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. Commonly used as a gasket or seal for access doors and gate valves and other oven, stove, bbq and smoker applications.
This fiberglass braid outer shell material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.
This rope gasket features high compression capability and excellent push back with virtually no compression set, with high cycle life, due to the knitted metallic stainless steel core.
Two size of the rope are available: OD of 0.42" / 10.7mm & 0.57" / 14.4mm. Clip spacing is 3". Clips may be removed with side cutters.
Higher Intermittent
This high temperature, heat & flame resistant and thermal insulating fiberglass rope gasket seal is fabricated with high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. Commonly used as a gasket or seal for access doors and gate valves and other oven, stove, bbq and smoker applications.
This fiberglass braid outer shell material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.
This rope gasket features high compression capability and excellent push back with virtually no compression set, with high cycle life, due to the knitted metallic stainless steel core.
Two size of the rope are available: OD of 0.42" / 10.7mm & 0.57" / 14.4mm. Clip spacing is 3". Clips may be removed with side cutters.
Very High Temperature Fiberglass Rope Gasket with Hollow Core & Clip Mounting
Part Number
R-FG-MC-CLIP
R-FG-MC-CLIP
Share this page.....
03/18
Click Image
To Open
Catalog Page
Catalog Page

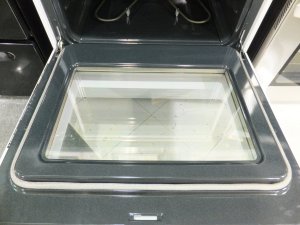

Example of Self Cleaning Oven Gasket Mounted into Door Frame
Example of Self Cleaning Oven Gasket Mounted into Oven Frame
