S Fiberglass Sleeve with Binders -  Primary Wire Insulation Sleeve
NEMA Classified & Meeting MIL-R-60346 (type IV, Class 1)
High Temperature Heat, Flame & Pyro Resistant and Thermal Insulating

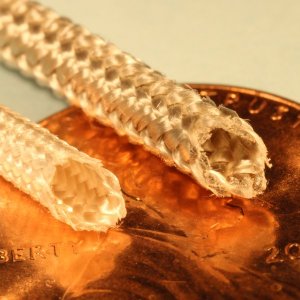

Small Diameter S-Type Fiberglass Sleeve:
Catalog Page & Pricing
Part Number
S-SFG
Return To Main Page
Share this page.....
11/16
Click Image
To Open
Catalog Page
S Fiberglass AWG wire size braided sleeve catalog page data sheet
FlameShieldä high temperature and heat resistant S-Type fiberglass sleeve is approved and NEMA classified and meets MIL-Y-1140 for wire protection.

Binders available include Acrylic and Oleoresinous Varnish.  Available in 8 colors, however the colors are not stable above 302F / 150C.

This sleeve is free of Boron and in the presence of radiation will not decompose and produce undesirabale gases.  Used in the nuclear industry and other hostile environments.

Fabricated from high quality yarns that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C and intermittent use to 1742°F / 950°C. It provides excellent protection for industrial wires, cables, hoses (hydraulics), tube and pipes and also provides thermal insulation and personnel protection.

This high temperature sleeve / heat resistant sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents.  It is highly flexible and conformable.
SIZE CHART
Click Image
To Open
Size Chart
S fiberglass braided sleeve size chart
awg small diameter braided S type fiberglass sleeve wire protection high temperature heat resistant
awg small diameter S type braided fiberglass sleeve with binders wire protection

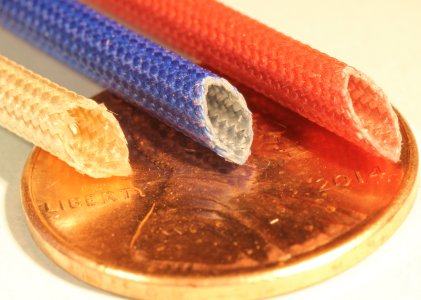

Small Diameter S-Type Fiberglass Sleeve: With Binders: colors available.
