PTFE Coated & Impregnated Fiberglass Fabrics
High Temperature, Heat Resistant & Chemical Resistant
550°F / 287°C Continuous Exposure: Higher Intermittent
High Temperature, Heat Resistant & Chemical Resistant
550°F / 287°C Continuous Exposure: Higher Intermittent

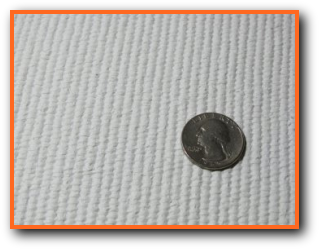

High-Temperature
PTFE Coated
Fiberglass Fabric
PTFE Coated
Fiberglass Fabric
This high temperature, heat resistant and chemical resistant fabric offers the advantage of a non-asbestos material with a higher temperature range and with excellent resistance to almost all solvents, caustics and acids. This fabric makes an excellent gasket material and is a milk white color.
The base fiberglass fabric is rated to 1000°F / 537°C, while the PTFE (Teflon) coating melting point is 620°F / 327°C.
Available in 5 weights / thicknesses, in roll widths of 40" and 60", and in roll lengths of 50 yards.
The PTFE is applied to the fabric by dipping the fabric through an immersion tank of liquid PTFE dispersion. The fabric is then air dried as it leaves the dip tank. The result is a PTFE coating on the fabric which is soft, robust and flexible; however, it can be abrasively removed from the fabric with aggressive fingernail scraping, resulting in a thinner and thinner layer of ptfe remaining with each pass.
The coating follows the contours of the fabric, and the weave of the fabric remains prominent, however, the PTFE causes the yarns to be sealed and the small gaps between the yarns filled, resulting in an almost totally air-tight / liquid-tight fabric.
The base fiberglass fabric is rated to 1000°F / 537°C, while the PTFE (Teflon) coating melting point is 620°F / 327°C.
Available in 5 weights / thicknesses, in roll widths of 40" and 60", and in roll lengths of 50 yards.
The PTFE is applied to the fabric by dipping the fabric through an immersion tank of liquid PTFE dispersion. The fabric is then air dried as it leaves the dip tank. The result is a PTFE coating on the fabric which is soft, robust and flexible; however, it can be abrasively removed from the fabric with aggressive fingernail scraping, resulting in a thinner and thinner layer of ptfe remaining with each pass.
The coating follows the contours of the fabric, and the weave of the fabric remains prominent, however, the PTFE causes the yarns to be sealed and the small gaps between the yarns filled, resulting in an almost totally air-tight / liquid-tight fabric.
PTFE Coated Fiberglass Fabric: .060 inch through .125 inch thickness
PTFE Impregnated fiberglass fabric with acrylic or silicone self adhesive backing
.0047 inch through .0157 inch thickness
.0047 inch through .0157 inch thickness
High-Temperature
PTFE Impregnated
Fiberglass Fabric
PTFE Impregnated
Fiberglass Fabric
This high temperature, heat resistant and chemical resistant fabric with self adhesive backing and a release film is used in packaging as a non-stick release surface on heat sealers, blister and form fill sealing equipment. Used on guide rails chutes and slides. Excellent resistance to almost all solvents, caustics and acids.
Used as an insulation buffer for RF sealing, and as a surface cover on L Bar, Impulse and Bag sealers.
This material is a tan color.
The base fiberglass fabric is rated to 1000°F / 537°C, while the PTFE coating melting point is 620°F / 327°C.
Available in 5 weights / thicknesses, in roll widths of 36 to 39.5" in a roll length of 36 yards.
The PTFE resin is applied to the fabric in a hot process and under pressure, causing a total impregnation of the base fabric. The surface of the resin is smooth and it takes considerable and aggressive force to scratch the ptfe surface to remove it from the fabric with fingernail scraping.
Available in Standard and Premium grades. Premium grade has an almost perfectly smooth surface while standard grade surface has some profiling of the underlying base fabric
Used as an insulation buffer for RF sealing, and as a surface cover on L Bar, Impulse and Bag sealers.
This material is a tan color.
The base fiberglass fabric is rated to 1000°F / 537°C, while the PTFE coating melting point is 620°F / 327°C.
Available in 5 weights / thicknesses, in roll widths of 36 to 39.5" in a roll length of 36 yards.
The PTFE resin is applied to the fabric in a hot process and under pressure, causing a total impregnation of the base fabric. The surface of the resin is smooth and it takes considerable and aggressive force to scratch the ptfe surface to remove it from the fabric with fingernail scraping.
Available in Standard and Premium grades. Premium grade has an almost perfectly smooth surface while standard grade surface has some profiling of the underlying base fabric
