Lost Racing NHRA Brake Fuel Line Fireproof Covering Equivalent Firesleeve
SAE AS1072E Firesleeve: Aviation-Marine
High Temperature, Heat & Flame & Pyro Resistant Silicone Rubber Coated Fiberglass Sleeve & Jacket: Protection for critical hydraulic, oil and fuel lines
(Allows qualified hose assemblies to pass AS1055D testing)
500°F / 260°C Continuous Exposure:
FlameShieldTM aviation / aerospace grade high temperature, heat, flame and pyro resistant firesleeve jacket is manufactured to SAE AS1072E standards so it can pass the fire testing standards of AS1055D; and the requirements of FAA TSO - C53a and TSO - C75.
It may be used for all fuel, oil, hydraulic, fire extinguisher and prop feathering lines. "Fire-proof" hose lines, as defined by the FAA, must withstand a direct flame for fifteen minutes under specified flow conditions without failure. Fire-resistant lines must withstand a 5 minute exposure under these conditions.
Fire-proof hose lines are obtained when the proper size Firesleeve is selected and properly assembled with appropriate clamps.
Firesleeve is available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 25 size steps.
This firesleeve is equivalent to Goodridge firesleeve part numbers 3299-001-.25 (1/4" ID), 3299-001-.38 (3/8" ID), 3299-001-.50 (1/2" ID), 3299-001-.75 (3/4" ID), 3299-001-1.00 (1" ID), 3299-001-1.25 (1 1/4" ID).

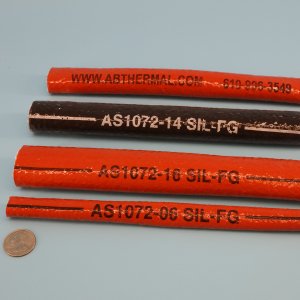

Aviation / Aerospace / Marine Firesleeve
Molten metals simply slide off of the extra heavy duty coating of High-Temperature Silicone Rubber on all of these products (firesleeve), providing excellent burn-through protection.
Firesleeve pyro resistant sleeve & jacket withstands molten splash & welding splatter. Withstands 500°F / 260°C continuous exposure; 2200°F / 1205°C for periods up to 15 minutes and short flash excursions to 3000°F / 1650°C.
Firesleeve is highly flexible
To meet the installation requirements of AS1072, Firesleeve ends can be dipped in our SleeveSeal liquid silicone rubber end seal to prevent wicking of liquids and contamination.
SleeveSeal tape can be used to seal the ends of sleeve at the connector for a watertight seal. Also protects the clamp if used.
Substrate Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C / 649°F;
Softens at 732-877°C / 1349-1610°F-; Melts at 1121-1182°C / 2049- 2159°F
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.
Breaking Elongation: 4.81% Std. 4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TEX
Silicone Rubber Technical Specifications
Durometer, Shore A: Initial; 35 Aged 240 hours @ 200°C; 45
Tensile Strength (psi): Initial; 875 Aged 240 hours @ 200°C; 800
Elongation %: Initial; 500 Aged 240 hours @ 200°C; 200
Flammability, UL94; V-1
Dielectric Strength (volts/mil); 485
AS1072 Specification: Minimum: .03" (0.8mm)
Nominal average measured 10 locations over 12" length: .05"
Phosphate Ester hydraulic fluids
MIL-H-5606 hydraulic fluid
MIL-T-5624 Jet Fuel
MIL-L-6082 lubricating oil
MIL-L-7808 lubricating oil
MIL-L-23699 lubricating oil
MIL-H-83282 hydraulic fluid
